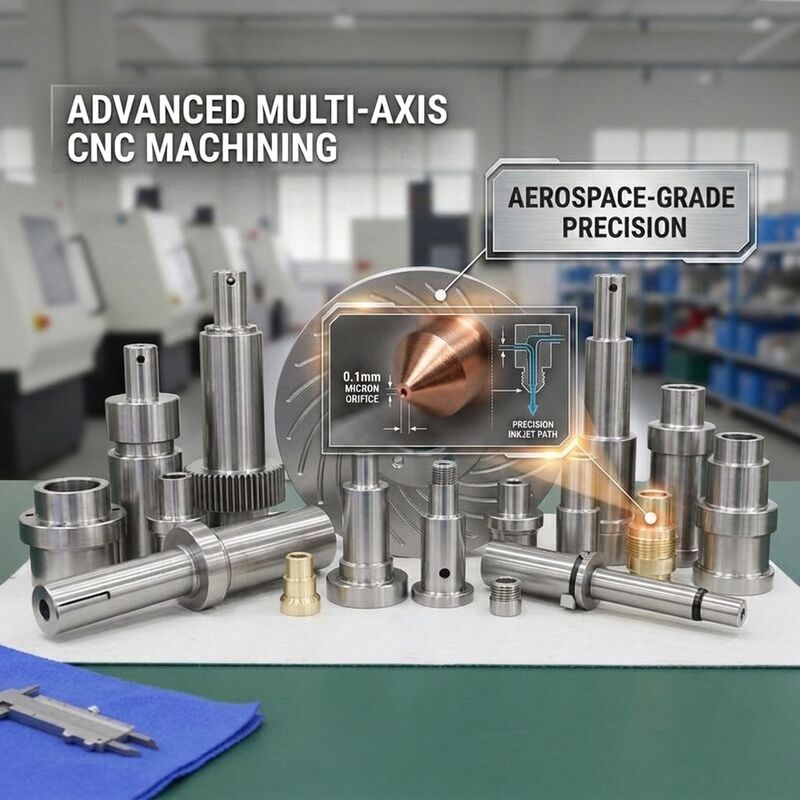

CNC Swiss Type Machined Copper Precision Nozzle 0.1mm Orifice for Inkjet Printing Industrial Applications
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | KJT Precision |
| Certification: | ISO 9001:2015; SGS; IATF 16949; ISO 13485 |
| Model Number: | CNC-TP-028-COPP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.50 - 50.00 / Piece |
| Packaging Details: | Individual PE bag + anti-rust paper, partitioned foam tray, export-grade corrugated carton with pallet |
| Delivery Time: | 3-5 working days for samples, 15-25 working days for production |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 500000 Pieces per Month |
|
Detail Information |
|||
| Material Grade: | Copper C14500 Tellurium | Tolerance: | ±0.002mm |
|---|---|---|---|
| Surface Finish: | Polished | Orifice Diameter: | 0.1mm |
| Flow Rate: | Custom Calibrated | ||
| Highlight: | Swiss CNC Copper Nozzle 0.1mm,Inkjet Printing Precision Part,Micro Orifice CNC Turning OEM |
||
Product Description
Product Description
This CNC Swiss-type machined copper precision nozzle features a 0.1mm orifice for industrial inkjet printing applications. Manufactured from C14500 tellurium copper with ±0.002mm orifice tolerance and polished internal surface, the nozzle ensures precise droplet formation and consistent print quality. C14500 offers excellent machinability (85% vs pure copper) while maintaining 93% IACS conductivity. Each nozzle undergoes 100% flow rate calibration and microscope inspection of orifice geometry. Suitable for industrial inkjet printers, 3D printing extrusion nozzles, and precision dispensing systems.
As a leading CNC turning manufacturer with over 15 years of precision machining experience, we produce CNC Swiss Type Machined Copper...
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Copper C14500 Tellurium |
| Tolerance | ±0.002mm |
| Surface Treatment | Polished |
| Material Grade | Copper C14500 Tellurium |
| Tolerance | ±0.002mm |
| Surface Finish | Polished |
| Orifice Diameter | 0.1mm |
| Flow Rate | Custom Calibrated |
Key Selling Points
Factory Strength
50+ CNC Machines
Swiss-type lathes, 3/4/5-axis machining centers, turn-mill centers from Citizen, Star, Doosan, and Mazak
Advanced QC Lab
CMM, 2D vision measurement, roughness tester, hardness tester, salt spray chamber, spectral analyzer
Certifications
ISO 9001:2015, SGS certified, material traceability, PPAP Level 3, full inspection reports
Engineering Team
15+ engineers providing DFM analysis, process optimization, and free technical consultation
Monthly Capacity
500,000+ precision turned parts per month with stable quality and on-time delivery
Global Export
Exported to 30+ countries across North America, Europe, Japan, Korea, and Southeast Asia
Applications
- Industrial Inkjet Print Heads
- 3D Printer Extrusion Nozzles
- Precision Fluid Dispensing
- Fuel Injector Nozzles
- Aerosol Spray Systems
Frequently Asked Questions
Q: How do you machine a 0.1mm orifice?
A: We use micro-drilling on Swiss-type CNC with 0.1mm carbide micro-drills running at 30,000+ RPM with high-pressure coolant through the tool. Orifice geometry is verified under 200x microscope inspection.
Q: What is C14500 tellurium copper?
A: C14500 is copper alloyed with tellurium (0.4-0.7%) for improved machinability while retaining 93% IACS conductivity. It produces small, clean chips ideal for precision Swiss-type machining.
Q: Do you calibrate each nozzle?
A: Yes, every nozzle undergoes 100% flow rate calibration using regulated pressure water/ink testing. Flow rate tolerance is typically ±5% of target. Individual calibration certificates available.
Get Your Custom Quote Today
Send us your drawings or samples. We provide free DFM analysis and quotation within 24 hours.
